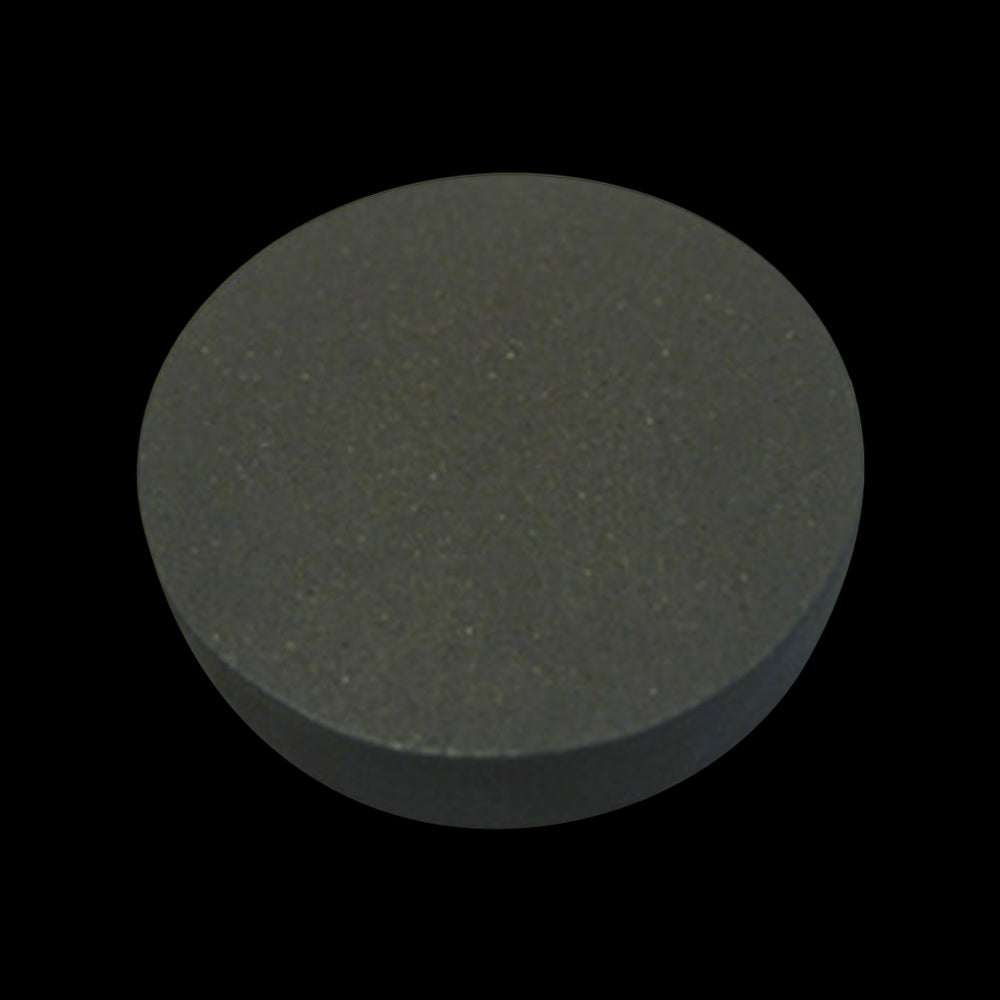

YBa2Cu3O7 (YBCO) PLD Target

Introduction to Superconductivity in YBCO Thin Films

YBCO, also known as Yttrium Barium Copper Oxide, is a high-temperature superconductor (HTS) material that has gained significant attention due to its potential applications in various fields such as power transmission, energy storage, and medical imaging. The properties of YBCO thin films make them attractive for these applications, as they are able to conduct electrical current with zero resistance at relatively high temperatures.

Crystal Structure of YBCO

YBCO has a layered perovskite crystal structure, where copper and oxygen layers are sandwiched between yttrium and barium layers. The superconducting properties of YBCO arise from the interaction between the electrons in the copper oxide layers, which form Cooper pairs, and the lattice structure of the crystal. This interaction allows the electrons to move freely without resistance, leading to superconductivity.

Epitaxial Growth of YBCO

YBCO thin films are commonly epitaxially grown on substrates such as SrTiO3, LaAlO3, and MgO. Epitaxy refers to the process of growing a thin film of a material with a crystalline structure that is aligned with the underlying substrate. This allows for the maintenance of the desired properties of the film, including superconductivity, as the film thickness is reduced.

Comparison to Other Superconductive Materials

YBCO has a higher critical temperature (Tc) than most other superconductive materials, meaning that it can maintain its superconducting properties at higher temperatures. This makes it more attractive for various applications compared to conventional low-temperature superconductors, which require cooling to temperatures close to absolute zero. However, YBCO is still not as widely used as some other superconductors due to its relatively high cost and challenges in processing and fabrication. Nevertheless, ongoing research and development is aimed at improving the properties of YBCO and making it more accessible for commercial applications.

The Role of Oxygen Defects in YBCO

Oxygen defects in YBCO thin films can play a significant role in determining the superconducting properties of the material. These defects can arise from the presence of excess or deficient oxygen atoms in the crystal structure, which can lead to the formation of non-superconducting regions and decreased superconducting properties. The control of oxygen defects is therefore critical for improving the quality and performance of YBCO thin films.

Common Oxygen Pressure and Substrate Temperature in PLD Deposition for YBCO

Pulsed Laser Deposition (PLD) is a common method for growing YBCO thin films. The deposition conditions for PLD of YBCO, such as oxygen pressure and substrate temperature, can have a significant impact on the quality and performance of the film. Commonly used substrate temperatures for PLD of YBCO range from 600-800°C, while oxygen pressure is typically maintained at around 10^-5 to 10^-4 Torr. It is important to carefully control these parameters to produce high-quality YBCO films with optimal superconducting properties.

Similar Superconducting Thin Film Materials to YBCO

1. Bi-based cuprates BSCCO (Bi-Sr-Ca-Cu-O)

2. Tl-based cuprates (Tl-Ba-Ca-Cu-O)

3. Hg-based cuprates (Hg-Ba-Ca-Cu-O)

4. Pb-based cuprates (Pb-Sr-Ca-Cu-O)

5. Nd-based cuprates (Nd-Ba-Cu-O)

6. Gd-based cuprates (Gd-Ba-Cu-O)

These materials have similar superconducting properties to YBCO, but may have different synthesis methods, critical temperatures, and critical fields, making each material unique and suitable for different applications.
